Assembly with robot (variant 1)

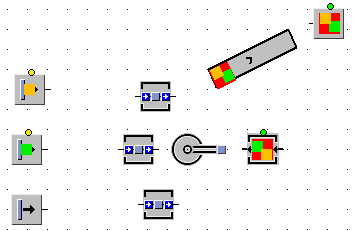

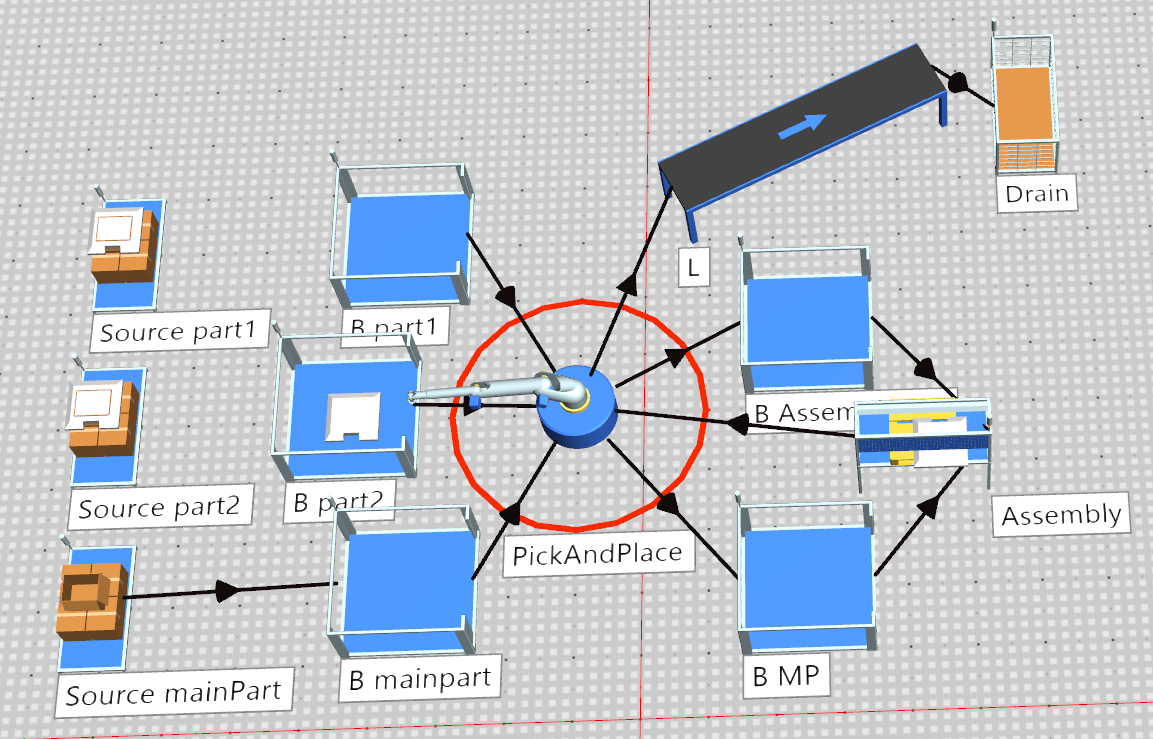

Assembly using the PickAndPlace robot and with the help of the exit strategy cycle sequence. The main-part triggers the transfer of the add-on parts (exit control).
book example 7.10 (2nd edition)
book example 7.11 (2nd edition)
book example 7.10 (2nd edition)
book example 7.11 (2nd edition)
Training-ID: 637
Date: 25.03.2026
Necessary libraries:
Tested with: Plant Simulation 2404
NEW August 2020
If your browser download the example as a MS Word file (.doc) or .html, please change the file extension to .spp .
